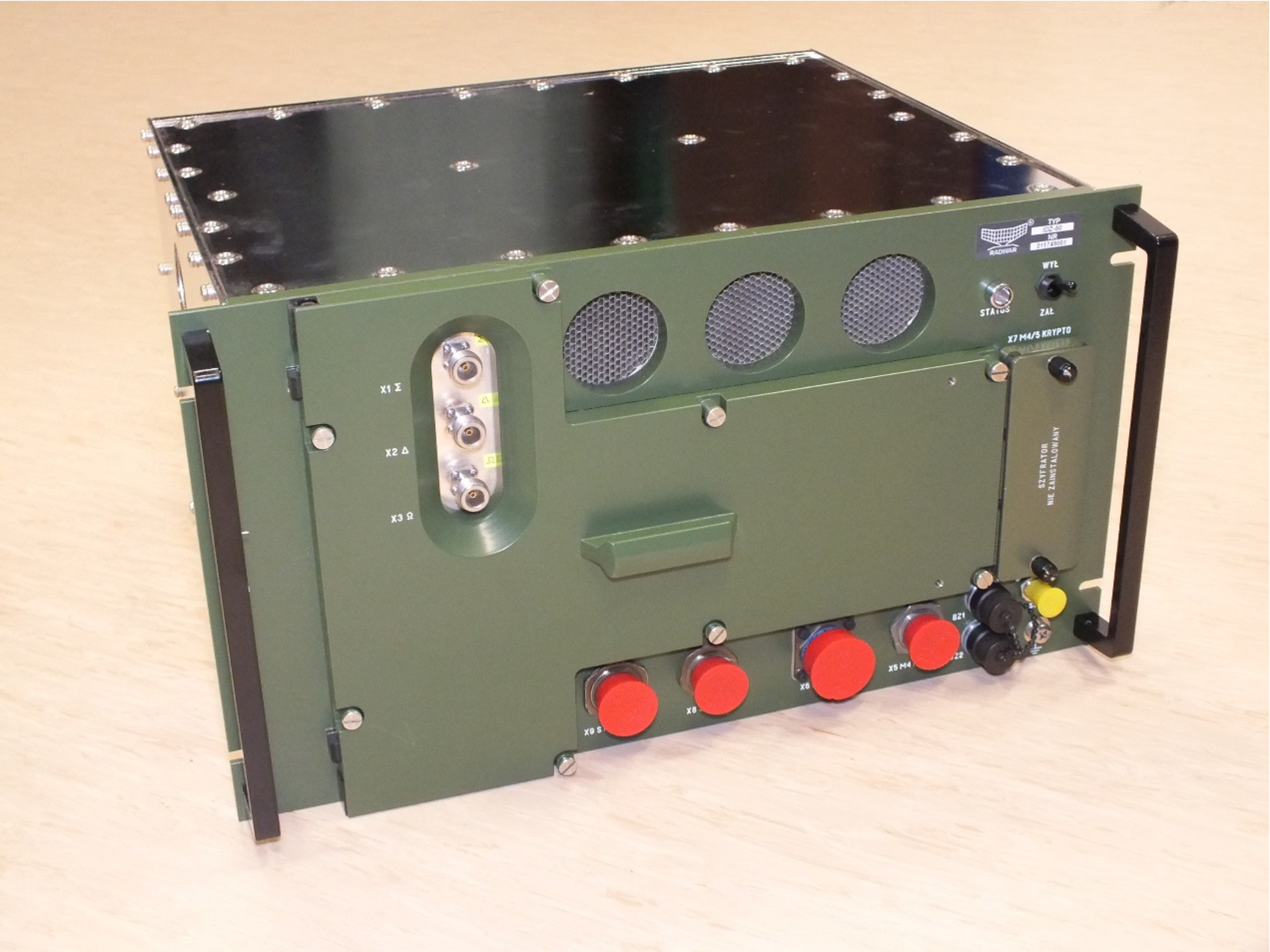

IDZ-50 Long-range Interrogator

The IDZ-50 is a long-range interrogator dedicated for use with large-area surveillance and LRAD systems. The most powerful member of PIT-RADWAR’s new family of Mark XIIA IFF systems, the IDZ-50 utilizes state-of-the-art digital circuits and signal processing algorithms for superior accuracy and performance.

The interrogator supports identification in Modes 1, 2, 3/A, C and S as well as Mode 5 (with an appropriate crypto computer installed). Sophisticated built-in test (BIT) procedures and modular design ensure efficient fault detection and repair, and software updates provide future growth capability. High output power and processing capacity make the IDZ-50 a perfect IFF device to complement long-range primary radar systems.


IDZ-50 Advantages

supports IFF Mode 5 (up to Level 2), SSR Mode S (up to Level 2), Modes 1, 2, 3/A, C and 4

compliant with STANAG 4193 Edition 2++ with upgrade path to Edition 3

compliant with ICAO Annex 10

state-of-the-art digital circuitry and advanced processing algorithms for superior accuracy, performance and noise immunity

monopulse processing for accurate position evaluation

supports KIV-77/SIT2010 and compatible crypto computers for Mode 5 cryptographic security

extensive fault detection capability through advanced built-in test (BIT) procedures

modular design for quick repairs and easy hardware upgrades

future growth capability through firmware updates

standard ASTERIX protocol for broad interoperability with primary radar and C4ISR systems
